Precision and Power in Every Double-Point Press
Stamping applications demand strength, stability, and repeatable precision, and a double-point press from Sangiacomo Presses Americas does not disappoint. Designed for maximum rigidity and balanced force distribution, these presses handle larger dies and tougher forming operations with ease. Each model provides consistent performance and long-term durability, helping you achieve higher accuracy, smoother production, and longer tool life—no compromises required.

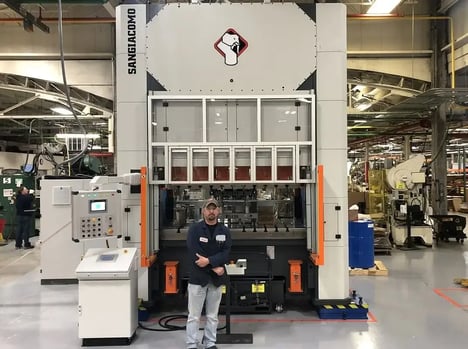

2-Point Gap Frame Press: Technical Highlights
Our double-point straight side presses range from 125 to 500 tons, delivering the strength, balance, and stability needed for high-tonnage stamping applications. Using two connecting rods, these machines distribute force evenly across the ram, making them ideal for progressive and transfer stamping, as well as forming larger or asymmetrical parts with superior accuracy.
Engineered for safety, precision, and long-term reliability, every Sangiacomo double point press incorporates proven design principles and premium components to maximize performance and uptime:
- Certified to meet CE and OSHA/ANSI standards
- Unitized steel frame validated through Finite Element Analysis (FEA)
- Forged alloy steel shaft for maximum strength and durability
- Pneumatic or hydro-pneumatic clutch brake systems
- Fast-acting automatic hydraulic overload protection
- Siemens PLC control panel for precise operation and easy monitoring
- Variable strokes per minute to adapt to production needs
- Automatic ram adjustment for simplified setup
- Eight-point adjustable ram guides for enhanced alignment
- PILZ safety systems for reliable operator protection
- Ram with oil collection system for cleaner operation
- Air counterbalance cylinders for smooth, balanced motion
- Safety light curtains (front) and mechanical guards (rear) for added safety

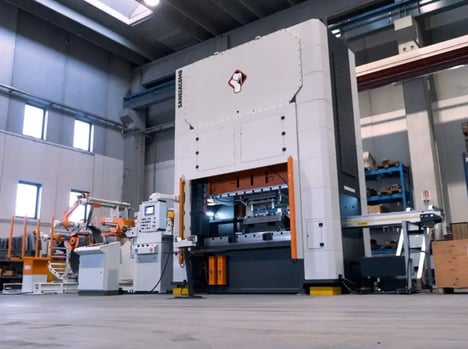

Features & Benefits of a Sangiacomo Double-Point Straight-Side Press
When you need dependable power and accuracy for demanding stamping operations, a Sangiacomo double-point straight-side press delivers both. Its dual-connection design provides uniform force distribution across the die area, minimizing deflection and extending tool life. Combined with a rigid, FEA-tested frame, this structure allows for exceptional part consistency and process stability, even under high load conditions.
Ease of use and safety are built into every detail. From the Siemens PLC interface and automatic ram adjustment to the integrated overload protection and PILZ safety systems, these presses streamline setup, protect operators, and keep production moving.
Key attributes and benefits include:
- Even force distribution for improved part quality and die longevity
- Rigid straight-side frame ensures stability during high-tonnage operation
- Adjustable stroke and speed settings to suit multiple applications
- Integrated overload protection for reduced downtime and maintenance
- Proven engineering for consistent accuracy and repeatable performance
- Safety systems and controls that enhance operator confidence
Engineered for Precision
Dual connecting rods ensure balanced force and minimal deflection across the die surface. Each stroke delivers uniform pressure, allowing operators to achieve tighter tolerances and consistent part quality, even on complex or asymmetrical jobs.
Designed for Durability
A forged alloy steel shaft, unitized steel frame, and heavy-duty construction make every two-point gap frame press a long-term investment in uptime. Tested with Finite Element Analysis, these presses stand up to continuous production with reduced vibration and wear.
Engineered for Control
Featuring a SIEMENS PLC control system and variable speed operation, Sangiacomo presses give you precision control over every cycle. The automatic ram adjustment and quick overload protection systems keep your line running safely and efficiently.
Frequently Asked Questions About Double Point Straight Presses
Below, we've answered a few common questions concerning our double-point press:
What makes a double-point press different from a single-point model?
A double point press uses two connecting rods instead of one, distributing force evenly across larger dies. This provides better balance, accuracy, and stability for demanding stamping jobs.
Are Sangiacomo double-point presses customizable?
Yes. Our engineering team can tailor the press to your exact requirements, from custom bolster plates to auxiliary mounting, non-standard clearances, and other design modifications.
What applications are ideal for double-point presses?
They excel in high-tonnage operations, such as progressive and transfer stamping, as well as forming large or asymmetrical parts where balanced force is critical.
Discover How a Sangiacomo Double Point Press Can Transform Your Production Floor
If you're considering a double-point press for your next production investment, our team is ready to assist. We'll guide you through the specifications, help identify the ideal tonnage and configuration, and ensure the press you choose aligns perfectly with your application. Contact Sangiacomo Presses Americas today to discuss your requirements and discover how our double point solutions can enhance your stamping operations.
